White Rogers

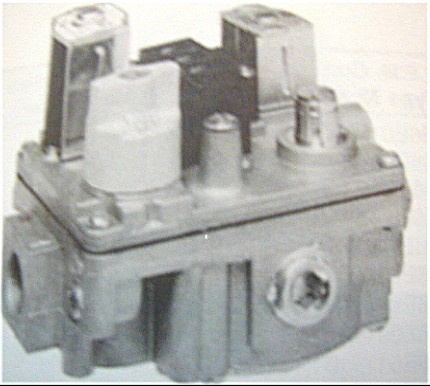

GV36E36      MFG # 36E36-304      Redundant Gas Valve

Replaced by 36H32-304

* Compact multifunction valve designed to meet the requirements of all types of intermittent ignition systems
   ( cycle pilot, proven pilot, direct spark ignition and hot surface ignition ).
* Can be mounted horizontally or vertically.
* Has pilot filter, adjustable pilot pressure and manual shut off valve.
Specifications:
Electrical rating: 0.54 amps, Regulator adjustment range: natural gas 2.5 to 5.0" WC.
Maximum pressure rating: 1/2 PSI ( 14.0 WC ), swing radius: 3-9/16"
Ambient operating range: -40 deg to + 175 deg.

36H32-304 Replaces all of the following:---------------------------------------------
   OEM                         OEM Part #    OEM                        OEM Part #     OEM                        OEM Part #
Multiple----------------- 36E01-204         Multiple ----------------36E36-106       Heil Quaker/ICP--------- 36E36-248
Trane--------------------- 36E01-221        Carrier ------------------36E36-201       Trane -----------------------36E36-252
Goodman---------------- 36E01-233        Heil Quaker/ICP ----- 36E36-216       Snyder General/ICP ----36E36-256
York---------------------- 36E01-243        York ----------------------36E36-220       Carrier ---------------------36E36-263
Snyder General/ICP-- 36E01-244        Amana--------------------36E36-230       Weil McLain -------------36E36-265
Snyder General/ICP-- 36E01-245        Carrier ------------------ 36E36-232       Weil McLain -------------36E36-266
York---------------------- 36E01-248         Heil Quaker/ICP------36E36-235        Weil McLain -------------36E36-267
American Dryer------- 36E01-257         Heil Quaker/ICP------36E36-237        Carrier --------------------36E36-303
H.B. Smith-------------- 36E01-308         Heil Quaker/ICP------36E36-238        Carrier --------------------36E36-305
H.B. Smith---------------36E01-310         Snyder General/ICP--36E36-244       Carrier --------------------36E36-304
Multiple------------------ 36E36-105        Snyder General/ICP--36E36-245
    MFG # 36H32-304--------------------


Part #                         OEM Part #
GV93E36      MFG # 36E93-304       Direct replacement Gas Valve

GV93E36 Replaces all of the following:---------------------------------------------
* Replaces Carrier BDP five wire gas valves, also # 346-AX, 346-AY, 646A, P361-1501 and Carrier
   Totaline # EF32CW183.
* Works with Carrier "Pick and hold" systems
* Also replaces White-Rogers OEM # 36E93-303 for Carrier systems, * Direct acting solenoid valve with sealing force.
* Valve is 1/2" inlet x 3/4" outlet with 3.5" pressure regulator.

Specifications:
24VAC, 60 Hz, Ambient operating range: -40 deg to + 175 deg, Capacity: 140,000 Btu's.

GV93E36     MFG # 36E93-304-----------


Redundant Gas Valve
OEM Replacement

* Compact, multi-function valves replace gas valves for Carrier, Amana, Goodman, York, Lennox and Trane.
* Complete with natural to LP gas conversion kit, inlet and outlet pressure taps and reducer bushings.
* GV36E22, GV36E24, and GV3652 include conversion kit for proven pilot.
* Mounts vertically or horizontally.
   Specifications:
   Ambient temperature rating: -40 deg F to + 175 deg F
   Capacity: 140,000 BtuH, Electrical rating: 24V, 50/60 Hz, .30 amps, Maximum pressure rating: 1/2 PSI,
   Pipe size: 1/2" inlet x 1/2" outlet ( side taps plugged )

Our part #       Original Mfg.#          OEM               OEM Part #              New Mfg.#            Price          Purchase
