 Burners, pilots, thermocouples & thermopiles
Welcome to Heatcoolparts.com
All Orders are Processed Using:
     "SSL  SECURE E-COMMERCE PAYMENT SYSTEM"

Not sure What part you need?Click here

Burners: --------------Send e-mail with model and serial # for pricing----------------------------



Pilots:---------Send e-mail with model and serial # for correct match and pricing---------------

Intermittent Pilot Burner Ignitor-Sensors

Natural gas only

Compatible with all Honeywell intermittent ignition control modules, 15,000 volt open circuit spark ignition, insert orifice type, includes pilot burner with bracket, ceramic-insulated Kanthal flame rod / spark ignitor and ground strap, Maximum temperature ratings: At electrode tip - 1775 deg , At ceramic insulator -  1250 deg.


Part #                                 Tip Style                                        Price                          Purchase

Q345A1305                                        A                                                        $ 38.80

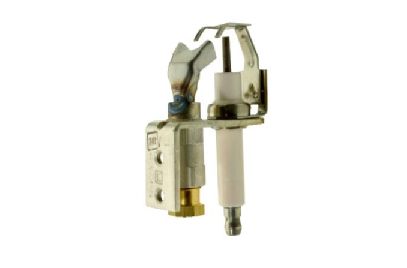

Q345A1313                                        B                                                        $ 38.80


Q345A1321                                        C                                                        $ 38.80


Thermocouples

Q340A Series

Universal 30 mV Thermocouples, screw in and clamp types of pilot burners

Part #                        length                                                         Price                        Purchase

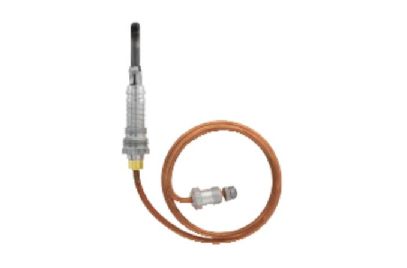

Q340A1066                18"                                                        $11.00


Q340A1074                24"                                                        $13.00


Q340A1082                30"                                                        $15.00


Q340A1090                36"                                                        $18.00


Q340A1108                48"                                                        $19.00

Thermocouples

Q390A Series

Universal 30 mV Thermocouples, screw in, or push in types of pilot burners

Part #                       length                                                          Price                         Purchase

Q390A1095                18"                                                           $11.00


Q390A1046                24"                                                           $13.00


Q390A1053                30"                                                           $ 15.00


Q390A1061                36"                                                           $18.00


Q390A1103                48"                                                           $19.00


Thermopiles

750 mV generators

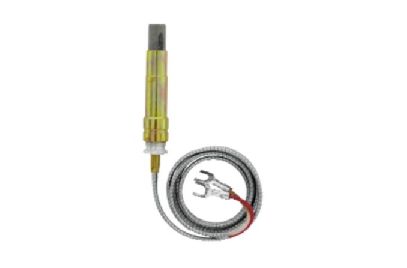

Q313A1170                35"   includes spade terminals and PG-9 adapter                   $57.35

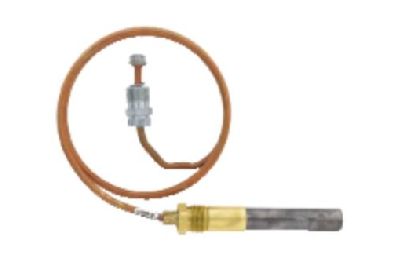

1951-536  Robertshaw 36"  Coaxial connection type, mounting nuts included        $44.95


Q347A  Spark ignitor

Includes: inner Kanthal electrode with ceramic insulator, bracket and Kanthal ground strap.

Use with S87C,D, K; S89E,F and Q354A

Temperature Ratings at electrode tip---1775 F  (968 C) max.

At ceramic insulator---1250 F (677 C) max

Spark Gap: 5/32 in.  (4 mm ).

Electrical connections: 1/4 in. diameter stud for ignition cable.

Mounting: one 3/16 in. (5 mm) slot, three 3/16 in. (5 mm) untapped screw holes.



                          Ground strap orientation                              Electrode length              Price               Purchase

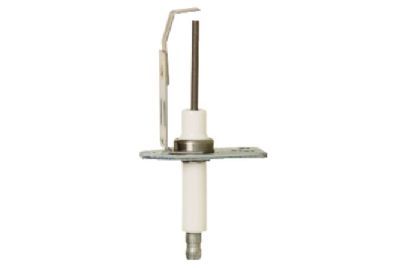

Q347A1004             Standard                                    2-1/32 in. (52 mm)     $69.20


Q347A1012            90 Degree right angle                   2-1/32 in. (52 mm)     $69.20


Q354A  Fame Rectification Sensor

Includes: Kanthal rod supported by ceramic insulator and mounting bracket.

Use with S825, S87C,D,K or S89E, F.

Temperature Ratings: At electrode tip--1775 F  (968 C) max.

Electrical Connections: one 1/4 in. (6 mm) quick connect terminal.

Mounting: one 3/16 in (5 mm) slot, three 3/16 in. (5 mm) untapped screw holes.

Flame Rod Length

                                      in.                                                                         mm


Q354A1000                 2.5                                                                          64                     $67.80


Q354A1018                  6                                                                            152                   $84.60


Fame Sensors

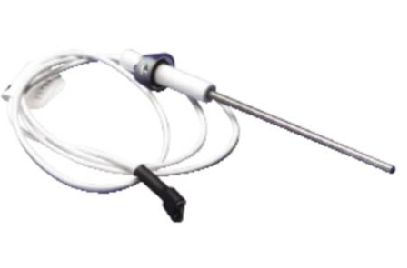

760-401                      White Rogers Flame sensor with 30" lead length                         $49.20

                                   1.4" female spade terminal with Kanthol flame rod material

                                    Part # 760-401






Use our e-mail or order form for parts not listed.              Let us know what you need
