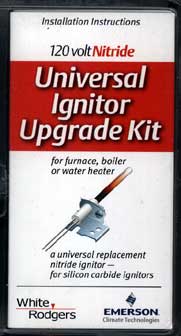

   Our igniter heating element (illustrated left) is an all ceramic (Si3N4) product.

It uses complex multi-layer moulding and sintering techniques. Moulded in one
using slip casting machines. The part is then sintered in a vacuum furnace.

Silicon Nitride heating element. Bracket stainless steel 304 - bright finish

Ceramic insulator body non glazed 95% alumina - polished finish

Cable - PTFE U/L Specification - temperature rating 250ºC

replaces Most of the following brands



HSIURK12v    Universal Hot surface ignitor Kit                          $47.25





  Mfg #            style         terminal block               lead length                                     price            purchase

41-401 is compatible or replaces all the following brands


41-401                                   yes                           4-1/2                                            $ 48.80

Amana  B1336102
Amana  D99182
Amana  10041601
Norton  271A
Norton  201A
Trianco  2600-359
White Rogers 767A-356

41-402 is compatible or replaces all the following brands

41-402         no                             19"                                     $ 43.75

AMR  201W                                Majestic  75-92-104
Armstrong  38322B001
Coleman  1474-051                     Majestic  75-92-105
Coleman  1474-052                     Metzger  201N
Clair Bros  C242                          Metzger  201W
Clair Bros  C238                          Mor-Flow 3200618
DMO   20834                              Enerco Tech  10399
DornbackFurnace271W               Hupp Industries 09050
Evcon1474-051                           Evcon  1474-052
Rheem  62-22441-01 RUUD
Nordyne105141000                     Superior fireplace  94851
Nordyne   632-0880                     Trane company     340039P01
Nordyne   632-0770                     Trane company     IGN23 with no pig tail
Norton  201K                               Wayne Home Equip  62821-001
Norton  201L                                Wayne Home Equip  62821-002
Norton  201N                               White L.B. company 120-07549
Norton  201R                                White Rogers  767A-357
Norton  201W                               Williamson  09050
Norton  271N
Norton  271W

41-403 is compatible or replaces all the following brands

41-403    no                        5-1/2                                         $ 43.75

Norton  201
Norton  271
Perfection schwank  108803-G1
Snyder General  1380654
Trane Company  IGN26
Trane Company  IGN30
Weil Mclain  511-330-193

41-405 is compatible or replaces all the following brands

41-405                                         no                        5-1/2                                       $ 45.60

Detroit Radiant  201D
Norton  201D

Norton  271D ( replaces Tempstar and ICP 1148245 )
Norton  271P
Viessman  9302-094
York  025-27766-000
York  025-27774-000
York  025-29043-000
York  025-29050-000

41-406 is compatible or replaces all the following brands

41-406    no                       10-1/2                                   $ 45.60
American Appliance  271B
Comfort Zone  150114-04-01
Mor-Flo  3200580
Mor-Flo  3210401
Norton  201J
Norton  201Y
Norton  271M
Norton  271Y

41-407 is compatible or replaces all the following brands

41-407   yes                         4-1/2                                  $ 45.60

Trane Company  B144676P02
Trane Company  IGN30

41-408 is compatible or replaces all the following brands

41-408          yes          4-1/2                                           $ 45.60

Rheem  62-22441-01 RUUD
Rheem  62-22868-02

Rheem  62-22868-93
Trane Company  B340039P01

41-408B    Rheem  62-22868-93 and conversion bracket           4-1/2                 $48.00
                  Bracket # AE61581-01

41-409 is compatible or replaces all the following brands

41-409         yes                   4-1/2                                $ 48.00

Carrier/ Day& Night/ Bryant/ LH33ZS001A, LH33ZS002, LH33ZS003,LH33ZS004,

 41-412 is compatible or replaces all the following brands

41-412                                             No                 5-1/4                                $ 48.00

OEM # B1401009, Goodman,
OEM # B1401009, Janitrol
Norton # 271NM

41-414 is compatible or replaces all the following brands

41-414                                             yes                5-1/4                                $ 44.80



OEM # 1096047, 1096048, Arcoaire, Heil, Tempstar, Intercity.
OEM # 1380680, Arcoaire
OEM # 271NM, Norton

Trane Ignitor



IGN0023          yes    Part # IGN0023                                             $48.00



  IGN0054         yes    Robertshaw # 41-408                                   $ 48.00

IGN00117       yes     Part # IGN00117                                          $53.60

                                                                               Replaces IGN00104

Norton Mini Hot surface ignitor conversion kit

20937       473-20937-001                    Conversion kit Norton hot surface.           $ 78.85

                                                              Replaces 025-30277-700

Rheem ignitor Kit
22669                 62-22669-92 Rheem ignitor kit, also for Drum furnace                 $ 79.80

                            Kit includes: Ignitor, heat shield kit with screws and ignitor gasket.
