                                              Electric Heat Sequencer

        Therm-o-Disc Heat Sequencers

 Fig.    Mfg.#              No. of Timings                    No. of Switches                                     Price                Purchase

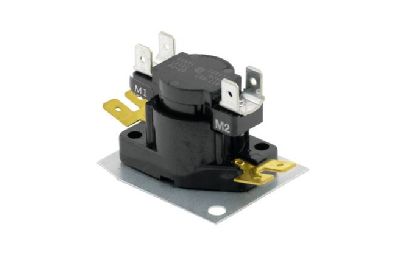

A       24A34-1                   1                                           1                                                    $24.00

A       24A34-2                   1                                           1                                                    $24.00

B       24A34-3                   1                                           2                                                    $28.00

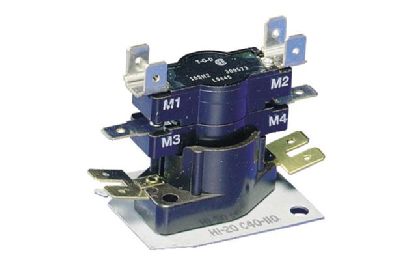

B       24A34-4                   1                                                                                                 $28.00

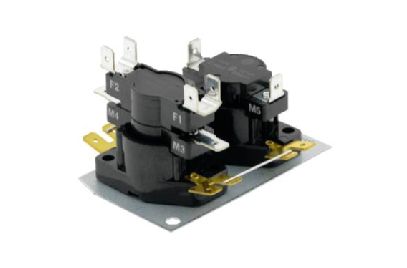

C       24A34-5                   2                                           3                                                    $43.00

C       24A34-6                   2                                           4                                                    $49.00

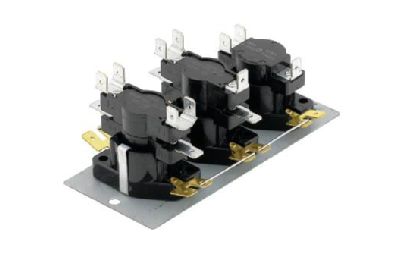

D       24A34-14                 4                                           5                                                    $58.00





 A     B    C    D


Sequencers: ------------send e-mail with model and serial off part or equipment not listed----------

Description:

Replaces Klixon, Mars, White-Rodgers, Watsco, Honeywell and Supco Double quick-connect terminals for combination and heater loads High ambient rated to 165°F 24VAC non-positional control 25A resistive switching Voltage and ambient self-compensating Combined fan and heat load ratings (7.2 kW) Direct replacements for sequencing both fan and heat Terminal markings are equivalent to all competitive types and allow one wiring method for various sources of sequencers May be wired in series to allow sequencing of one through seven element furnaces

Part#             Mfg #                     Type                            Specifications                 Price          Purchase

White Rogers Sequencers


Above White Rogers sequencers no longer available

replaced by the Honeywell sequencer R8330D1039

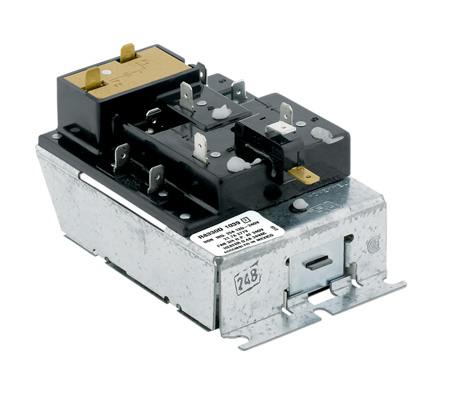

R8330D    R8330D1039                                        3 Stages           4 Switches        $209.40





                                                                  Click for larger image

 Replaces most single or multiple element electric furnace sequencers One control switches a fan and up to three heating elements ON and OFF in sequence Sequencers connect by auxiliary switch to control up to nine heating elements Isolated fan switch has positive interlock to assure fan is ON when the element is ON, and fan is OFF when the last element is OFF Combination rating on the first element switch allows replacement of devices having fan and first element controlled by the same switch without rewiring furnace Cycles ON within two minutes, OFF within four minutes Quick-connect terminals and wiring accessories included for quick and easy wiring and installation Ambient compensated for -20°F to 162°F Meets or exceeds all industry standards Mounts in any position Thermostat current draw is constant (0.4A) Dimensions: 4-13/16" W x 3-1/16" H x 2-11/31" D
Replacement For:

Cam stat       S106, S206, S306, S406, 14-100, 14-200, 14-300, 14-400,




Honeywell         R4154A, R4154B, R4154C, R4154D, R8154A, R8154B, R8154C, R8154D, R8206A, R8206B, R8206C, R8330A, R8330B, R8330C, R8330D, R8330E, R8330F, R8330G, R8330H, R8330J, R8330K, W879A, W879B, W879C, W879D.


Robertshaw     TDS-1, TDS-2, TDS-2-21, TDS-2-25.


Therm-o-disc      60704A, 1151, 1151A, 1152, 1152A.



White Rogers    24A11, 24A12, 24A14, 24A20, 24A21, 24A22, 24A51, 24A52, 24A53, 24A54, 24A55, 24A56,



Brands:



Amana  24A51-25, 24A53-107, 24A55-119, 24A55-120.

Standard 24A51-1, 24A51-5, 24A52-101, 24A52-111, 24A53-1, 24A53-101,

24A54-2, 24A54-5, 24A54-13, 24A55-105, 24A55-106, 24A55-101, 24A56-1.

Fedders 24A51-29, 24A51-2, 24A52-104, 24A53102, 24A54-17, 24A55-112.

Tuttle 24A51-17, 24A52-116, 24A53-6, 24A56-7, 24A55-113,

Day & Night, 24A51-18, 24A52-105,

Rheem 24A51-20, 24A52-123, 24A53-113, 24A55-121, 24A55-122.

Fraser & Johnson 24A51-21, 24A52-120, 24A55-115, 24A55-116.

York 24A51-22, 24A53-109, 24A54-15, 24A55-125, 24A56-8.

Coleman 24A53-112, 24A53-110, 24A55-126.

Carrier 24A51-26, 24A54-14, 24A53-108, 24A55-123, 24A55-124, HN67680006

Emerson 24A53-9, 24A53-114, 24A55-127, 24A56-9.

Southwest 24A51-27, 24A53-111.

General Electric 24A55-103, 24A55-105

Singer 224A52-102, 24A55-109.

ITT 24A51-28



RBM        189


Texas Instruments     60000A, 60000E, 60200A, 60700A,





                                            Electric furnace restring kits



RK5kw240   restring kit contains one 5 kw, 240 volt coil,                         price $38.75

                      Includes all isolators and screws needed

                     Part # RKL36-953,   MAR34601


RK3kw240   restring kit contains one 3 kw, 240 volt coil,                          price $38.75

                      Includes all isolators and screws needed

                     Part # RKL38-665


RK35kw240   restring kit contains one 3.5 kw, 240 volt coil,                     price  $38.75

                        Includes all isolators and screws needed

                     Part # RKL38-664
