Heatcoolparts.com


Honeywell Electronic Air Cleaners
and Filters
Welcome to Heatcoolparts.com


All Orders are Processed Using:  "SSL SECURE E-COMMERCE PAYMENT SYSTEM"           VeriSign Trusted



Not sure What part you need? Click here


  Part #           Duct size            Voltage        Air flow Rating              Price          Purchase

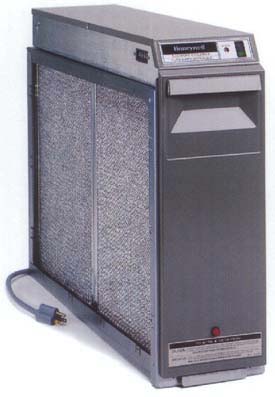

F50 Electronic Air Cleaners

Honeywell electronic air cleaners F50  16x20, 16x25, 20x20, 20x25     $460.00 plus shipping and handling.
As advertised on TV, for pollen, mold spores and allergies.
Duct mounted for central air purification. Cells fit in dishwasher for easy cleaning. The F50 Honeywell electronic air cleaner comes complete with 115v plug and 6' of cord attached to the power head, just plug it in. The internal air switch activates the air cleaner when fan comes on.
Features:
Available in five sizes to fit most ducts; adapts to airflow from either side.
Has one or two cells, depending on cabinet size. Capacity varies from 1000 cfm (1700 m3/hr) to 2000 cfm (3400 m 3 /hr), depending on size. Solid state power supply is self regulating and maintains peak efficiency during a wide range of cell dirt loading conditions. Pressure drop is approximately equal to that of a regular fiberglass filter. Electronic cell(s) can be washed in most home dishwashers.
Galvanized cabinet protects against rust. Neon light next to on-off switch tells if air cleaner is powered and if high voltage is present. Test button checks system operation. Troubleshooting guide mounted inside cell access door. Permanent wash reminder schedule included for mounting in convenient location. Pre filter screen(s) protects cell(s) from large dirt particles.
    #           Duct size            Voltage            Model                            Price            Purchase


                     All of the F50 air cleaners are now replaced by the F300


     * Shipping and handling not included *


                                 Dust mites,         Moving dust mite.



Enviracaire Elite F300 Electronic Air Cleaners

Features:
Available in five sizes to fit most ducts; adapts to airflow from either side. Has one or two cells, depending on cabinet size. Capacity varies from 1000 cfm (1700 m3/hr) to 2000 cfm (3400 m 3 /hr),
depending on size. Solid state power supply is self regulating and maintains peak efficiency during a wide range of cell dirt loading conditions. Pressure drop is approximately equal to that of a regular fiberglass filter. Electronic cell(s) can be washed in most home dishwashers. Galvanized cabinet protects against rust. Neon light next to on-off switch tells if air cleaner is powered and if high voltage is present.  Test button checks system operation. Troubleshooting guide mounted inside cell access door. Permanent wash reminder schedule included for mounting in convenient location. Pre filter screen(s) protects cell(s) from large dirt particles.
 Optional  indicator reminds home owner when to clean filters.
Part #           Duct size            Voltage        Air flow Rating              Price          Purchase

F300E 1001     16x20                    115             1200CFM                  $598.00
F300E 1019     16x25                    115             1400CFM                  $598.00
F300E 1027     20x20                    115             1400CFM                  $598.00
F300E 1035     20x25                    115             2000CFM                  $598.00
* Shipping and handling not included *


F50 & F300E Pre Filters

Part #           Duct size                                                                         Price          Purchase

PF209989        16x20               Pre-Filter for 1149 (Takes Two)       $69.40 Each
PF203371        16x25               Pre-Filter for 1073 (Takes Two)       $69.40 Each
PF203372        20x12.5            Pre-Filter for 1040 (Takes one)        $69.40  Each
PF203373        20x20               Pre-Filter for 1032 (Takes Two)       $69.40 Each
PF203372        20x25               Pre-Filter for 1065 (Takes Two)       $69.40 Each


WE1000        20x25                Ionizing wires  for 20"x12.5" cells     $20.26  Each


F50 & F300 Electronic Air Cleaner Replacement Cells

FC37A1114   Honeywell F50/F300 air cleaner cell for 16x20"         each   $264.25

FC37A1130   Honeywell F50/F300 air cleaner cell for 16x25"         each   $264.25

FC37A1064   Honeywell F50/F300 air cleaner cell for 20x12.5"      each   $264.25

FC37A1049   Honeywell F50/F300 air cleaner cell for 20x20"         each   $264.25

FC37A1064   Honeywell F50/F300 air cleaner cell for 20x25"         each   $297.25


F50 & F300 Electronic Air Cleaner Monitors

W8600A1007         Provides remote performance indication for F300,         $48.00
                                Premier white, Airwatch, wireless


ECL230        Electronic cell cleaner, specially formulated        Per quart    $12.48
                     to clean electronic cells and pre-filters.                   Per Gallon  $28.90
                     Ingredients: non-ionic surfactants, sodium metasilicate
                     and glycol ether.


208425A      F50 power head replacement solid state circuit board       $168.40

                            and instructions, 120vac.  ( no metal case )

                    Part # 208425A


208417Q     F50 power head replacement solid state circuit board       $293.60

                        and instructions, 120vac.  ( complete metal case )

                     Part # 208417Q


208417R      F300 Honeywell power head complete 120v                      $383.00

                     Part # 208417R      20x25 complete


F300PH       F300 Honeywell power head complete 120v                      $289.00

                     Part # F300PH


FC37B1030    Air cleaner cell for Honeywell air cleaner F90A 1050,  each  $282.80

                     Part # FC37B1030


F100 Media Air Cleaners



The F100 Media Air Cleaner captures a significant amount of the air-borne particles from the air circulated through the unit.
  • High efficiency media filter captures particles as small as 1.0 micron.
  • Efficiency and arrestance ratings based on the American Society of Heating, Refrigerating and Air Conditioning Engineers Standard 52.2-1999.
  • Fractional Efficiency: 15% (0.3 micron particles).
  • Minimum Efficiency Reporting Valve (MERV): 8 at 492 fpm.
  • Applicable to all gas, oil, and electric forced warm air furnaces and to compressor cooling up to 5 tons. Can be used with heat pumps only if the filter is changed regularly. Not recommended for applications where pressure drop may be critical.
  • Mounts in the return air duct.
  • Cabinet can support weight of residential furnace and evaporator coil.
  • Requires no electrical connections.
  • Mounts in any position.
  • Requires no maintenance except periodic media filter replacement.
  • Media filter is easily replaced by homeowner.
  • Later upgrade to F50 or F300 Electronic Air Cleaner is easy.

Replacement F100E Filters

Solid filter replaces the obsolete expandapac filter





FC100A1003 16x20x4-3/8                                                                 $48.00


FC100A1029 16x25x4-3/8              replaces 203719                         $48.00


FC100A1011 20x20x4-3/8                                                                 $48.00


FC100A1037 20x25x4-3/8                                                                 $48.00



Enviracaire Elite F200 Media Air Cleaners

Latest addition to the line of Honeywell air cleaners Offers better air filtration and lower resistance to air flow than the F100 Durable filter made with charged fiber technology ensures that air can easily pass through the air cleaner and your heating and air conditioning equipment
Easily upgradeable to F300 Electronic Air Cleaner
Features:

  • High efficiency media filter with charged micro fiber technology captures particles as small as 0.3 micron.

  • Efficiency and arrestance ratings based on the American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE) Standard 52.2-1999.

    • Initial Efficiency: 43 % (at 0.3 micron particles)

    • Initial Efficiency: 76 % (at 1.0 micron particles)

    • Minimum Efficiency Reporting Value (MERV): 10 at 492 fpm.

  • Test result from ASHRAE 52.1

    • Initial Dust Spot Efficiency: 61 %.

  • The above data is for a 16 x 25 in. filter.



Exclusive optional AIRWATCH indicator reminds home owner when to change filter.

  Part #           Duct size            Voltage        Air flow Rating              Price          Purchase
F200E 1003     16x20                    115             1200CFM                  $285.00
F200E 1029     16x25                    115             1400CFM                  $285.00
F200E 1011     20x20                    115             1400CFM                  $285.00
F200E 1037     20x25                    115             2000CFM                  $285.00
* Shipping and handling not included *

 Replacement F200E Filters

Solid filter replaces the obsolete expandapac filter



FC200A1003 16x20x4-3/8                             1200CFM                    $56.00


FC200A1029 16x25x4-3/8                             1400CFM                    $56.00


FC200A1011 20x20x4-3/8                             1400CFM                    $56.00


FC200A1037 20x25x4-3/8                             2000CFM                    $56.00


Not sure What part you need? Click here



use our e-mail or order form for parts not listed.      Let us know what you need

Do it yourself
Let us help

Having trouble with your system?
Or just have a question or need advice?

click here
TALK TO THE TECH
