Conversion kits


Our purpose is to provide the home owner with quality heating and air conditioning parts.

Not sure What part you need? Click here

Conversion kits:  upgrade from standing pilot to electronic ignition
conversion upgrade retrofit kits include: control, gas valve, pilot assembly,

                                 wiring and instructions. Technical support always available (e-mail only)

                                                                                                                                              Price                Purchase

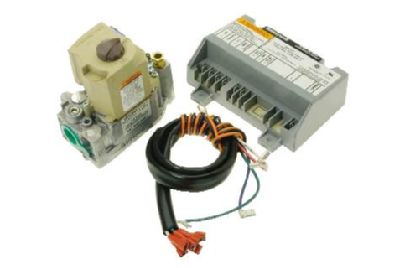

Y8610F4001         upgrade to electronic ignition    24vac                             $262.00

                             Natural,     Single rod,   -40 to + 175 deg,  up to 150,000 Btu,

                            1/2" inlet,  1/2" outlet

Easy to follow instructions with all conversion kits,   Natural or LP gas                   Details

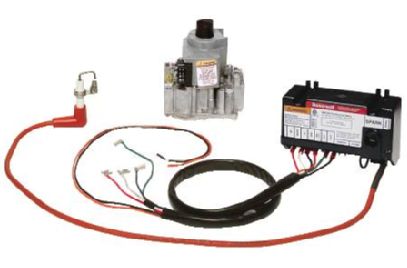

Y8610U6006         upgrade to electronic ignition    24vac                        $298.75                                    Natural/LP,         replaces Y8610U3003
                             Single or dual rod, -40 to + 175 deg,  up to 270,000 Btu,

                             1/2" inlet,  3/4" outlet

Easy to follow instructions with all conversion kits,   Natural or LP gas                    Details

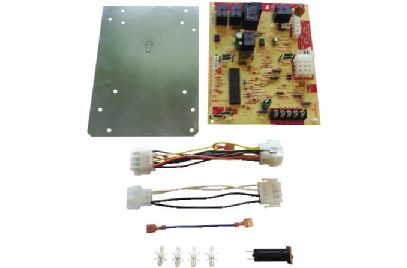

21D83M-843       Nitride Ignition Integrated Furnace Control              $263.84

  • Controls gas valve, ignitor, blower, inducer, humidifier and air cleaner

  • Includes diagnostic indicator flash codes

  • 3 fan speeds

  • Remote flame sense

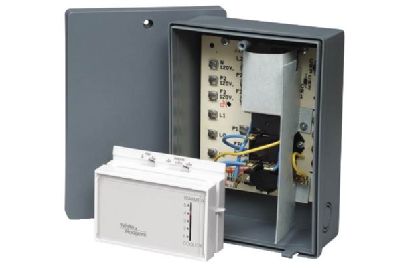

21D28-6               Evaporative Cooler Control System                          $258.80

  • Includes 24VAC thermostat (Mfg. #1F51-619) and control relay (Mfg. #8A18Z-2)
  • Control relay functions as a switching device for the thermostat to provide an even cooling level plus a choice of high and low-speed fan control on evaporative coolers
  • Designed with a fan delay (approximately 60 seconds) to pre-wet the cooler pads before the fan starts
  • 100% automatic
  • High or low fan speed selection
  • Integral transformer 120/240VAC to 24VAC, 60 Hz
  • Separate fan and pump relays
  • Raintight relay enclosure
  • Dimensions: 3-1/4" H x 4-1/2" W x 1-5/8" D (thermostat); 8-1/2" H x 6-1/8" W x 4-1/8" D (control relay)

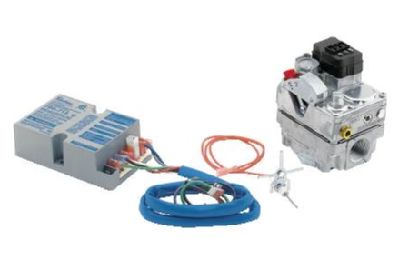

712-008           upgrade to electronic ignition for LP    24vac                     $349.15

       Natural/LP,                       200,000 Btu,    1/2" inlet,  3/4" outlet                   Details

  • Features flame rectification with solid state logic and flame sensing
  • Lockout - Lockout timing is 90 seconds
  • Gas Valve 720-070 1/2" X 3/4"
  • Ignition Unit 780-845 Lockout
  • Universal Model - Gas Valve has natural gas pressure regulator set a 3.5 W.C.
  • A separate LP gas pressure regulator set a 11.0" WC
  • 200,000 BTU Max Nat. Gas
  • 320,000 BTU Max LP


712-017            upgrade to electronic ignition     24vac                              $196.20

      Natural,                             200,000 Btu,    1/2" inlet,  3/4" outlet                  Details

  • 1/2" X 3/4" combo gas valve

  • 780-715 non-lockout ignition

  • Natural gas

  • 200,000 BtuH capacity



Not sure What part you need? Click here
use our e-mail or order form for parts not listed.      Let us know what you need
