Welcome to Heatcoolparts.com
Details
Honeywell Gas Valve Systems
Conversion kits ( Bottom of page )
Universal Intermittent Gas Pilot Systems

VR8200A2132        VR8200A2116

Includes:      1/2 X 3/8 in. reducer bushing; 39369014 bag assembly-3/4 in. straight flange with O ring,
                      screws and wrench; and 393691 Natural to LP gas conversion kit.
Dimensions: 5 3/8 in. high, 4 1/16 in. wide, 2 11/16 in. deep. Or  135 mm high, 104 mm wide, 69 mm deep.
Pilot Outlet: Compression fitting for 1/4 in. OD tubing.
Pressure  Rating (psi): 1/2 psi
Opening  Characteristics: Standard
Ignition Type: Standing Pilot  S/P .
Type of gas:  Natural
• Easy pilot adjustment for optimum flame
• Natural to LP gas conversion kit included
• Reducer bushing included
• Angle flanges available for side tap applications
                                              Part #GV82


VR8300A3500

Includes:      One 3/4 x 1/2 in. reducer bushing 393691 Natural to LP gas conversion kit.
Dimensions: 5 3/8 in. high, 4 1/16 in. wide, 2 11/16 in. deep, Or  135 mm high, 104 mm wide, 69 mm deep
Pilot Outlet:  Compression fitting for 1/4 in. OD tubing.
Pressure  Rating (psi): 1/2 psi
Opening  Characteristics: Standard
Ignition Type: Standing Pilot  S/P .
Type of gas:  Natural
Anticipator Setting:  0.7 A
Mounting:  0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Continuous Pilot Dual Automatic Valve Combination Gas Control. Combination gas control for use in 24 Vac,
gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Controls include safety shutoff, manual valve,
two automatic operators, pressure regulator and pilot adjustment. Compact size. Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power
supply is interrupted. Meets codes requiring dual safety shutoff.  Standard and slow opening natural gas
models include natural to LP gas conversion kit; LP to natural gas conversion kit also available. All adjustments,
wiring connections and pilot outlet are accessible from top of control. Adjustable servo regulator effectively
maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector. LITE-RITE (OFF-PILOT-ON) lighting sequence.
                                           Part # GV83



V800A1476, V800A1070, V800A1088,

V800 Low Voltage;
Provide complete control of continuous pilot gas-fired central furnaces and boilers. Include pilot flow adjustment
screw. Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
Add separate energy cut off (ECO) where codes call for dual safety shutoff. Complete safety shutoff on pilot flame failure. LITE-RITE (OFF-PILOT-ON) lightning sequence. ECO connector for V800 models. Part No.392451-1.
• Inlet and outlet pressure taps allow troubleshooting of problem installations
• Easy pilot adjustment for optimum flame
• Diaphragm type main valve closes automatically if gas or power supply is interrupted
• Add separate energy cut-off where codes call for dual safety shut-off
• Angle flanges available for side tap applications
• Reducer bushing included
• Dimensions: 4-3/4" H x 4-1/16" L x 3-3/16" W
                                                 Part # GV80A
                                                                          Part # GV80B
                                                                          Part # GV80C


VS820A1047, VS820A1054

VS820 Millivoltage
Combination Gas Controls Provide complete control of continuous pilot gas-fired central furnaces and boilers.
Include pilot flow adjustment screw. Easy to install, adjust and service; all adjustments and connections are
accessible from top of control. Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
Complete safety shutoff on pilot flame failure. LITE-RITE (OFF-PILOT-ON) lighting sequence. ECO connector
for V800 models, Part No.392451-1.
• Inlet and outlet pressure taps allow troubleshooting of problem installations
• Easy pilot adjustment for optimum flame
• Diaphragm type main valve closes automatically if gas or power supply is interrupted
• Add separate energy cut-off where codes call for dual safety shut-off
• Angle flanges available for side tap applications
• Reducer bushing included
• Dimensions: 4-3/4" H x 4-1/16" L x 3-3/16" W
                                            Part # GV80D

                                                                     Part #  GV80E


VR8345M4302   Replaces: Honeywell VR8204A/M, VR8205A/M,VR8304M, VR8305M.
                                                  White Rogers #36E01, 36E36 standard opening valves.
                                                  Robertshaw  #7100DER, 7200DER and 7200IPER series valves

VR8345 Universal Electronic Ignition Combination Gas Control.
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or
intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh. Control includes
manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
Replaces virtually any IP, HSI, or DSI gas control. For use with natural or manufactured gas or LP gas.
Includes converter kit to adapt from natural to LP gas. Compact size. All adjustments and wiring connections
accessible from top of control. Four-inch swing radius allows easy rotation into position inside the tightest furnace
vestibules. Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
Internal inlet screen blocks contaminants in gas line from entering valve.
• Use with intermittent pilot, hot surface pilot or direct spark ignition.
• 1/8" NPT inlet and outlet taps on top of valve to allow adjustment in problem installations.
• Multipoise mounting allows 0° to 90° installation.
• Two 1/2" x 1/2" reducer bushings, terminal block and pilot plug included.

                                              Part # GV834

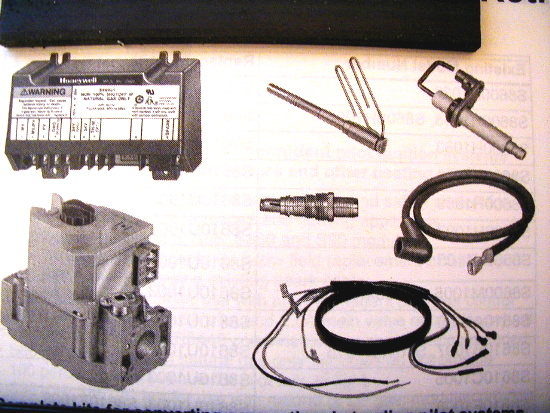

Conversion kits
Universal Intermittent Gas Pilot Systems

* Complete retrofit kit for converting conventional standing pilot systems to energy saving intermittent pilot systems.
* For use with 24vac gas-fired atmospheric furnaces, boilers and heating appliances.
* Complete self check on every call for heat - each component must be functioning properly to permit operation.
* Lock out timing eliminates nuisance lockouts. High voltage ignition cable unaffected by heat of gas ignition.
* Anti - rotation feature prevents ground rod from rotating out of position.
* Includes ignition cable with connectors, reducer bushings, installation hardware and instructions.
* CK87 has 100% shut off with 90 second ignition trial and 6 minute delay before retry; Natural or LP Gas.
              ignition trial / delay repeated until pilot lights or call for heat is removed.
* CK87 includes automatic vent damper plug and LP conversion kit.
* CK86 does not have 100% shut off; continual trial for ignition until pilot lights or system is shut down manually.   Natural or LP Gas
Specifications:
24VAC, 60 Hz, current rating 0.7A       * Below are the Parts list includes*



Part # CK86

Part # CK87


 Part# CK21D
21D18-14  upgrade to electronic ignition   24vac
Natural, 140,000 Btu,    1/2" inlet,  3/4" outlet


Part # CK22D

21D18-3 upgrade to electronic ignition     24vac

Natural, 335,000 Btu,    3/4" inlet,  3/4" outlet




                                                                         Part # CK712LP

    712-008  upgrade to electronic ignition for LP, 24vac,

Natural/LP, 200,000 Btu, 1/2" inlet,  3/4" outlet

1751-729                Ignitor/sensor assembly only,         part # 1751-729                         $38.45


    Part # CK712

712-017   upgrade to electronic ignition, 24vac

Natural, 200,000 Btu, 1/2" inlet,  3/4" outlet
