   Part #                                                               Description                                                             Price

*Relays & Contactors*



HN51KB024   Contactor/ relay for Day & Night/ Carrier/ BDP                                                 $41.70

                         Part # HN51KB024                             WE 621661

Poles: Single Full Load Amps (Range): 10 - 35 Coil Voltage: 115
Terminal Type: Screw Frequency: 50/60 Lock Rotor Amps (Range): 40 - 90
Line Voltage: 480 Resistive Amps: 25 A Full Load Amps: 10 A

Lock Rotor Amps: 50 A




HN51KC024   Contactor/ relay for Day & Night/ Carrier/ BDP                                                  $49.45

                         Part # HN51KC024      Replaces  HN51DB025,  HN51DB024

                                                                P282-0311   CTR01152, 42-25101-03

Poles: Single Full Load Amps (Range): 10 - 35 Coil Voltage: 24

Terminal Type: Screw Frequency: 50/60 Lock Rotor Amps (Range): 40 - 90

Line Voltage: 480 Resistive Amps: 40 A Full Load Amps: 15 A

Lock Rotor Amps: 75 A

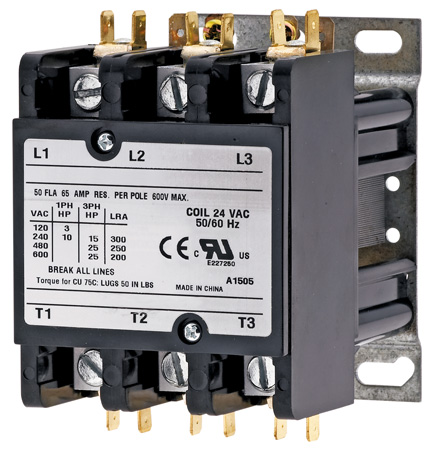

HN53CD024        Contactor for Carrier/Bryant/BDP/Payne                                                        $108.70

                              Part # HN53CD024      replaces HN53CB024, 50VQ601006

Poles: Three Full Load Amps (Range): 36 - 50 Coil Voltage: 24
Terminal Type: Pressure Lug Frequency: 50/60

Lock Rotor Amps (Range): 191 - 240 Line Voltage: 240
Resistive Amps: 50 A Full Load Amps: 40 A
Lock Rotor Amps: 140 A


-------------------------------------------------------------

P282-0431a        Carrier Totaline sub contactor for HN53CD024, same specs                            $44.39

                            Part # P282-0431a       40amp, 3pole, 24vac coil

--------------------------------------------------------------

CTR01161         Trane sub contactor for HN53CD024, same specs                                             $67.25

                            Part # CTR01161       40amp, 3pole, 24vac coil


HN52KC024       Contactor for Carrier/Bryant/BDP/Payne                                                          $68.75

                              Part # HN52KC024    2 pole, 24v coil, full load amps 30,

                                                                resistive amps 35          91-421

                                                      Replaces  HN52KC051,  HN51DC024, HN5LDB025, HN52KC025

Poles: Two Full Load Amps (Range): 10 - 35 Coil Voltage: 24
Terminal Type: Screw Frequency: 50/60 Lock Rotor Amps (Range): 141 - 190
Line Voltage: 240 Resistive Amps: 35 A Full Load Amps: 30 A
Lock Rotor Amps: 150 A



---------------------------------------------------

P282-0321            Carrier Totaline sub contactor for HN52KC024, same specs                            $48.80

                              Part # P282-0321


HN61KK324      Relay Pilot Duty for Carrier/Bryant/BDP/Payne                                                 $67.24

                            Part # HN61KK324     Replaces HN61KK124

                            DPST pilot duty relay, 24v coil




HN61KK911      Relay Power for BDP 517ENX03600AAPE                                                          $49.60

                            Part # HN61KK911, replaces HN61KQ030        90-340

Contact Rating : 12/6A @ 120/240V, 15A @ 277V
Contact Arrangement: DPDT Coil Volts : 24 Image : P252
Catalog Notes : RBM Type Relays 91 ,192,   90-340, Honeywell Type Relays R4222, R8222

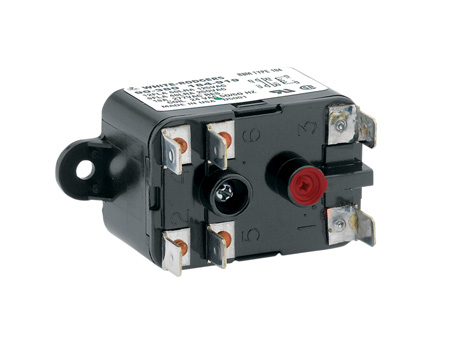

HN61KQ120      Power Relay cooling for Carrier/Bryant/BDP/Payne                                           $46.84

                            Part # HN61KQ120                          P283-0380

                            AMP 90380              replaces  HN61KJ250,  HN65DA334C,

                                                                           P283-1203,  27MHB8055

Contact Rating : 12/8A @ 120/240V, 18A @ 120/240V
Contact Arrangement: DPST Coil Volts : 24
Image : P251 Catalog Notes : RBM Type Relays 84 and 184




HN680001         Relay fan control for Carrier/Bryant/BDP/Payne                                                $198.60

                           Part # HN680001

                                                         replaces P284-1203,  46BA59330B01




*Time Delays*



HN67PA024      Time delay relay  for Carrier/BDP/Bryant/Payne                                                $107.20

                           Part # HN67PA024

                                                         replaces HN67PA025, HK25SA024

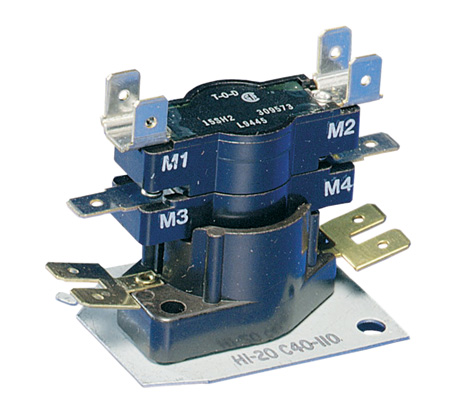

HN67QC005     Switch time delay for Carrier/BDP/Bryant/Payne                                                  $38.20

                          Part # HN67QC005                                      24A34-3  L36-477

                                                         Replaces  HN67BD002,  P284-1213

                                                                               P284-1308,  P284-1309




HN67ZZ001       ICM relay for Day & Night  Carrier/Bryant/BDP/Payne                                       $88.60

                           Part # HN67ZZ001,   replaces HN67ZA002, HN67ZA003,

                                                              HN67PA024, HK25SA024, HN67PA025,

                                                              HN67ZA008A, HN67ZA0038, HN67ZZ001,

                                                              HN67ZA003, HN67ZA008, HN67ZZ008,

                                                              CESO130043, 95-314697, 95-314698.



HH72CH003     Lock out timer for Carrier/Payne furnace                                                               $280.20

                           Part # HH72CH003    replaces HC72CH002,  P284-9001


38HQ660014        Circuit board/relay sensing for Carrier/Bryant                                                    $85.80

                              Part #  38HQ660014

                                                           replaces HN65CT003,  HN65CT004

                                                      HN65CT005,  38HQ660008,  38HQ680014

                                         * Monitors one leg of the compressor circuit *


HN68ZZ001       Relay circuit board for Carrier/Bryant                                                                   $69.80

                            Part # HN68ZZ001



use our e-mail or order form for parts not listed.      Let us know what you need
